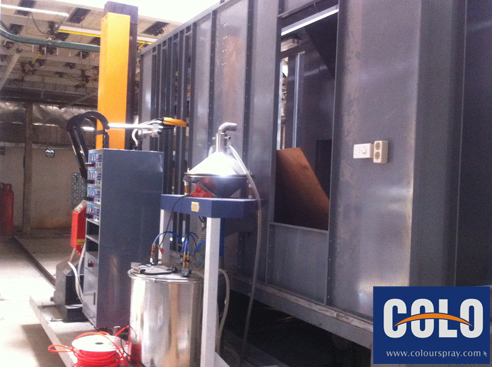

Compact powder coating line  with mobile powder spray booth ,suitable for small  factory that the workshop size it is limited
but hope to design automatic ,mass powder coating line
This powder coating line included below equipments :

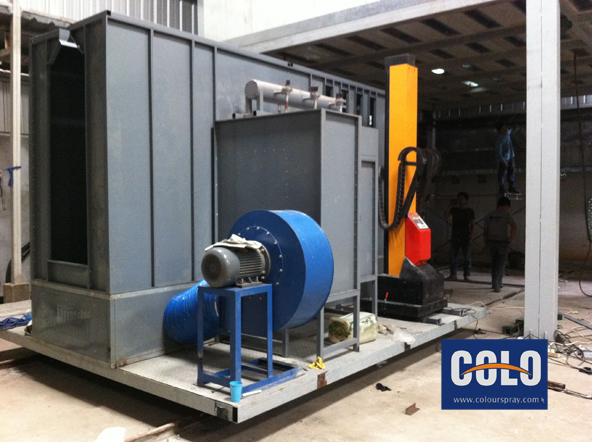

1)size  4mx1.5x2m	mobile spray booth	1set
12m	track on the ground	2pcs

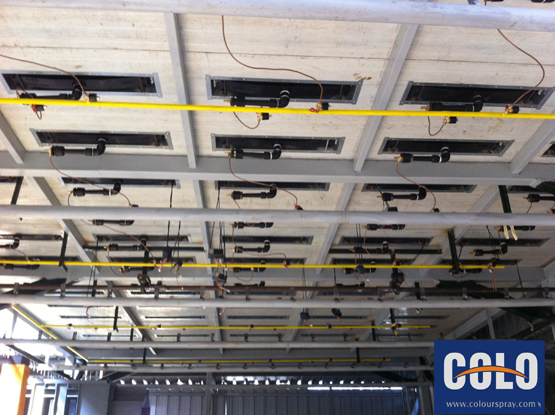

10x6.5x2(L*W*H) ,Infrared gas,0-250 degree ,adjusted， infra red gas (LPG fueled)	curing oven	1set
55-60m,up to 30kgs                                QX200 type ,with hanger	Converyor system	1set
1.8m---MTI-2000D	automatic reciprocator	2PCS
	automatic -MTI-800D	4pcs
60X60 hopper	seieve equipment	1pcs
with optiflex 2 trolley	MTI-800	2pcs
	control unit cabinet for 6pcs auto gun（installed 4pcs ,2pcs it is empty for future )	1set
